PRODUCT CATALOGUE

STATIC

DYNAMIC

PZ PRODUCTS

TECHNOLOGY

IMAGE SIZE

PIXEL MATRIX

PIXEL SIZE

WEIGHT

DETECTOR HOUSING MATERIAL

3025Z Static	a-Si	25.09×28.67 cm	2048×1792	139 μm	1.6 kg(Wired) / 1.9 kg(Wireless)	Carbon, Alloy
3025ZF Static	a-Si	23.90×30.50 cm	3108×3956	77 μm	1.6 kg(Wired) / 1.9 kg(Wireless)	Carbon, Alloy
3543Z Static	a-Si	35×43 cm	2560×3072	139 μm	2.6 kg(Wired) / 3 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
3543ZF Static	a-Si	35×42.60 cm	3534×4302	99 μm	2.3 kg(Wired) / 2.6 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
4343Z Static	a-Si	43×43 cm	3072×3072	139 μm	3.2 kg(Wired) / 3.7 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
4343ZF Static	a-Si	42.60×42.60 cm	4302×4302	99 μm	2.8 kg (Wired) / 3.5 kg (Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
6543Z Static	a-Si	64.50×42.70 cm	4608×3072	139 μm	6 kg	Carbon, Alloy
6543 NDT	a-Si	64.50×42.70 cm	4608×3072	139 μm	7 kg	Carbon, Alloy
4386Z Static	a-Si	43*86cm	3072*6144	139um	9.6kg (wired) / 10.0kg (wireless)	Carbon, Al Alloy
A843Z Static	a-Si	108×43 cm	7680×3072	139 μm	10 kg	Carbon, Alloy
1717ZV (Only used for Vet）	a-Si	43x43cm	3072×3072	139 μm	3.2 kg	Carbon, PC+ABS

PZ PRODUCTS

TECHNOLOGY

IMAGE SIZE

PIXEL MATRIX

PIXEL SIZE

FRAME RATE(1X1)

FRAME RATE(2X2)

FRAME RATE(3X3)

WEIGHT

1613D Dynamic	a-Si	16×13 cm	1280×1024	125 μm	30 fps	60 fps	/	1.25 kg
2121Z Dynamic	a-Si	21x21cm	1024x1024	200um	30fps	60fps	/	1.9kg
3025Z Dynamic	a-Si	25×29 cm	2048×1792	139 μm	10 fps	30 fps	/	2.3 kg
3030Z Dynamic	a-Si	29×29 cm	2048×2048	139 μm	10 fps	30 fps	/	2.7 kg
4343Z Dynamic	a-Si / IGZO	43×43 cm	3072×3072	139 μm	4 fps	15 fps	25 fps	4.5 kg(Wired) / 5 kg(Wireless)
4343 EGH Dynamic	a-Si	43×43 cm	3072×3072	140 μm	4 fps	15 fps	25 fps	10 kg
6543Z Dynamic	a-Si / IGZO	64.50×42.70 cm	4608×3072	139 μm	3 fps	12 fps	30 fps	6 kg

Hot PRODUCT

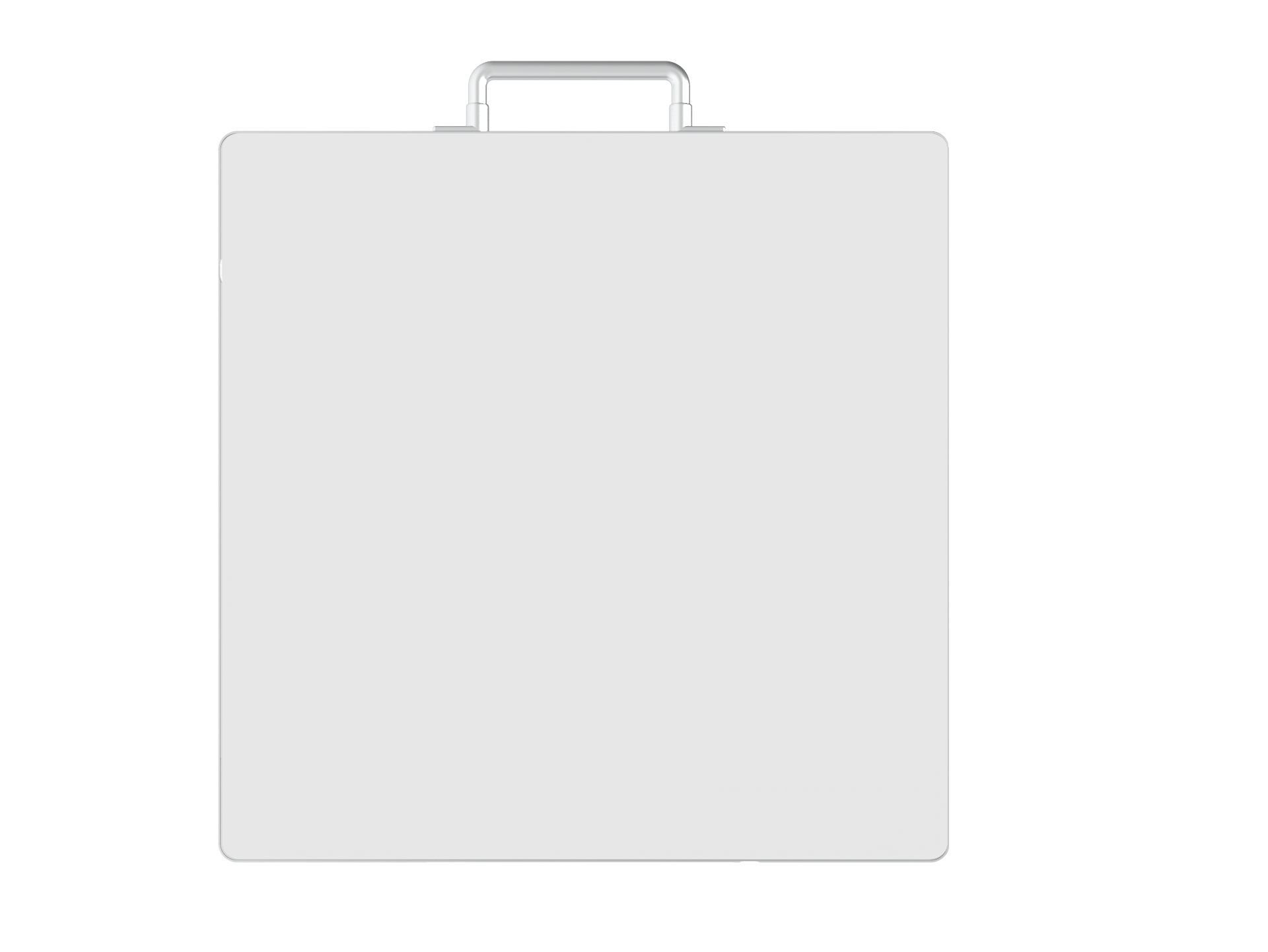

4343(Wired & Wireless)

4343 is a high performance, cassette-sized flat panel detector with both wired and wireless functionalities. Battery stands by for at least 14 hours. 4343 supports IEEE 802.11ac with transmission speed up to 1300M bps. The detector acquires outstanding images with high DQE and high resolution. Equipped with highly sensitive AED function, the detector can be easily connected to and synchronized with any kind of generators.
