4343Z Static_STATIC_FLAT PANEL DETECTOR_PRODUCTS

HOME > PRODUCTS > FLAT PANEL DETECTOR > STATIC

STATIC DYNAMIC

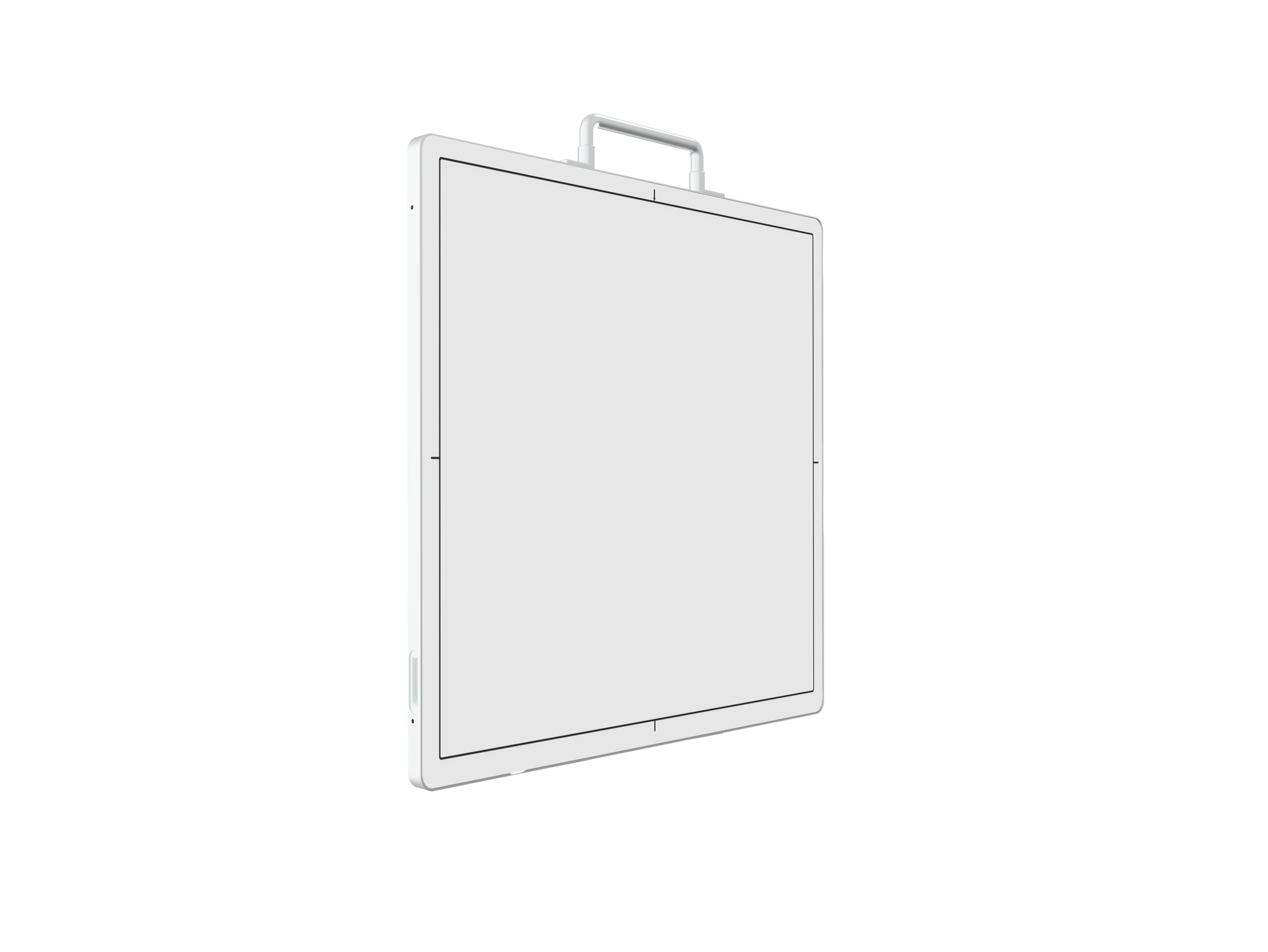

4343Z Static

43×43 cm

Image Size

3072×3072

Pixel Matrix

139 μm

Pixel Pitch

3.2 kg(Wired) / 3.7 kg(Wireless)

Weight

a-Si

Technology

1s(wired) / 2-3s(wireless)

Image Aquisition Time

PZ PRODUCTS

TECHNOLOGY

IMAGE SIZE

PIXEL MATRIX

PIXEL SIZE

WEIGHT

DETECTOR HOUSING MATERIAL

3025Z Static	a-Si	25.09×28.67 cm	2048×1792	139 μm	1.6 kg(Wired) / 1.9 kg(Wireless)	Carbon, Alloy
3025ZF Static	a-Si	23.90×30.50 cm	3108×3956	77 μm	1.6 kg(Wired) / 1.9 kg(Wireless)	Carbon, Alloy
3543Z Static	a-Si	35×43 cm	2560×3072	139 μm	2.6 kg(Wired) / 3 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
3543ZF Static	a-Si	35×42.60 cm	3534×4302	99 μm	2.3 kg(Wired) / 2.6 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
4343ZF Static	a-Si	42.60×42.60 cm	4302×4302	99 μm	2.6 kg(Wired) / 2.9 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
4343Z Static	a-Si	43×43 cm	3072×3072	139 μm	3.2 kg(Wired) / 3.7 kg(Wireless)	Carbon, PC+ABS(Wired) / Carbon, Alloy(Wireless)
A843B	a-Si	108×43 cm	7680×3072	139 μm	10 kg	Carbon, Alloy
6543Z	a-Si	64.50×42.70 cm	4608×3072	139 μm	6 kg	Carbon, Alloy
6543 NDT	a-Si	64.50×42.70 cm	4608×3072	139 μm	6 kg	Carbon, Alloy
